Profiline tanks

With a Profiline tank you are ready for now and the future!

A Profiline slurry tank offers you as a customer many possibilities. With the many options and versions, you determine the level of capacity and comfort yourself. This is already standard a fully equipped slurry tank that has been developed to work with heavier applications systems. All options can also be fitted or changed afterwards. Profiline tanks give you dependability.

Veenhuis’ Profiline tanks come in various versions and sizes, varying from the Profiline-S, single axle, tandem axle and tride axle. In addition, the Premium Integral tanks and the Premium Quad Shift tanks are also part of Veenhuis’ Profiline series. On this page you can read everything about the different versions of these tanks we offer.

Features of the Profiline series tanks are:

  • Many options
  • Almost all Veenhuis injectors can be added
  • 4-point double-acting Veenhuis lifting device
  • Capacity from 10,000 to 30,000 litres.

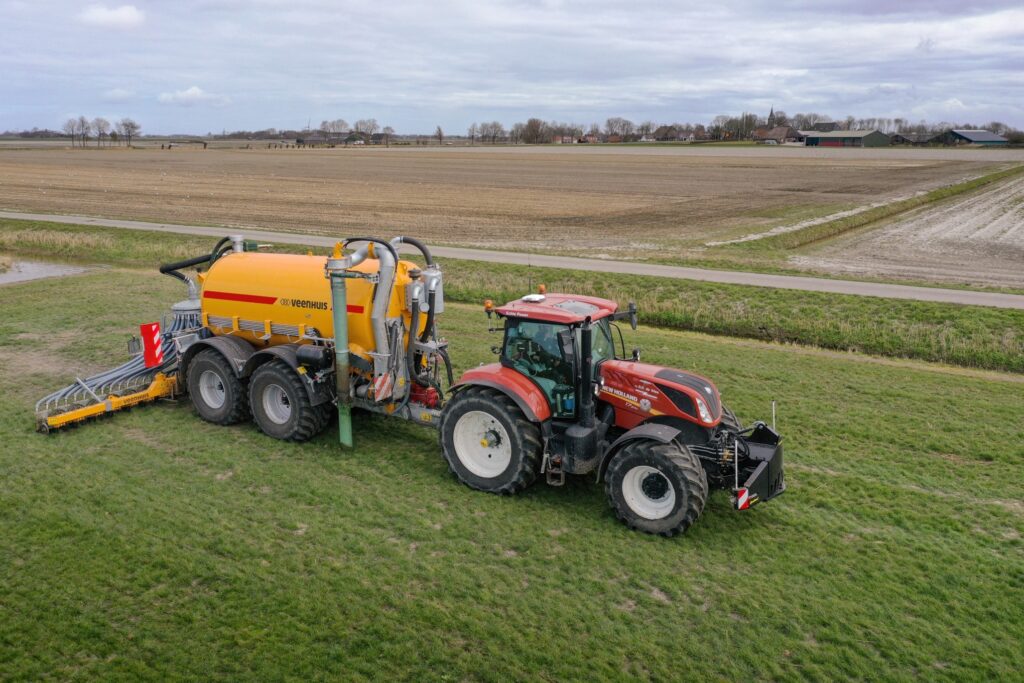

Profiline-S tanks

The Profiline-S tank is equipped with a boogie-tandem chassis. This tank offers you the opportunity to drive a high-quality machine for a favorable price. These tanks have a very short length which makes them manoeuvrable. In combination with a tandem axle construction, this machine ensures that the slurry can be injected effectively even on less load-bearing soils. The tank is available in a 13,000 liter version with a screw pump or a 14,500 liter version with a vacuum pump. A short suction arm or a docking arm is available for filling.

Profiline-S

Capacity (liter)

Chassis

Hydraulic power steering

Standard tyres

Pump system

Diameter tank (mm)

Trunk length (mm)

Conservation

Eccentric wurm pump

13.000

Boogie-tandem

Yes

BKT 650/65 R30.5

Eccentric wurm pump

1800

5000

Galvanized or yellow sprayed

Vacuum

14.500

Boogie-tandem

Yes

BKT 650/65 R30.5

Vacuum

2000

4500

Galvanised or yellow sprayed

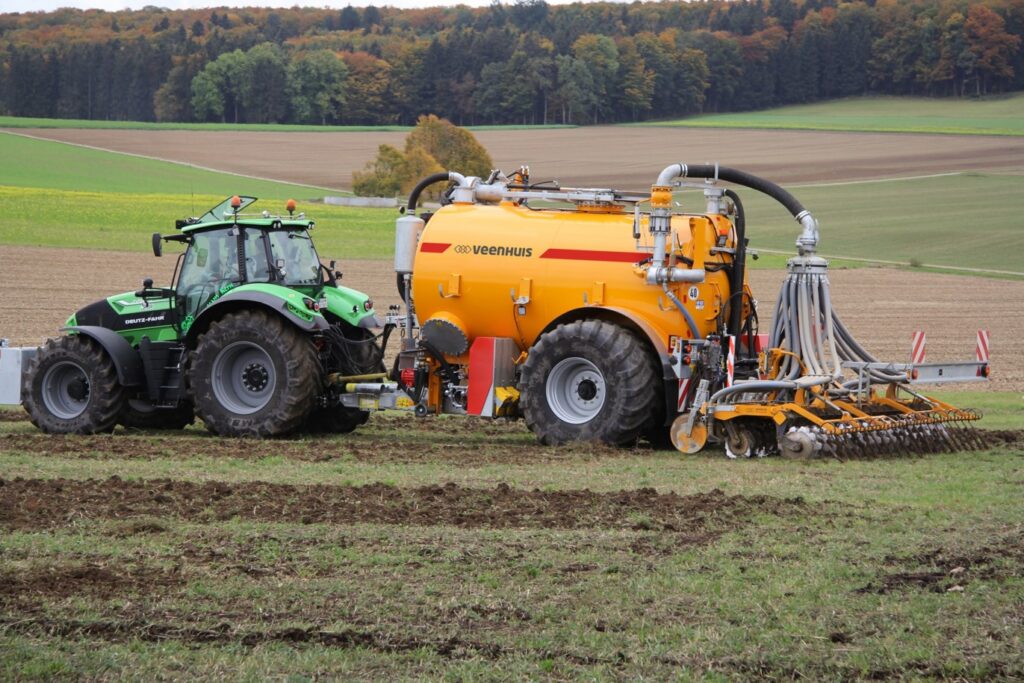

Profiline single axle

The Profiline single axle is the smallest tank in the Profiline segment from Veenhuis. This tank is available with a capacity of 10,000 liters to 14,000 liters. The Profiline single axle is available in a vacuum version or in a worm pump version. The vacuum pump is characterized by its high capacity and low wear costs. The Veenhuis worm pumps are characterized by high and constant suction power due to the large contact surface. The tank is standard on wide 800 tires and can optionally be equipped with a sliding axle. This combination ensures optimum weight distribution, which benefits the soil.

Profiline single axle

Capacity (liter)

Standard tyres

Pump system

Diameter tank (mm)

Trunk length (mm)

Conservation

Profiline 10.000

10.000

Alliance 800/60 R32

Vacuum or worm pump

1800

4000

Galvanised

Profiline 12.500

12.500

Alliance 800/60 R32

Vacuum or worm pump

2000

4000

Galvanised

Profiline 14.000

14.000

Alliance 800/60 R32

Vacuum or worm pump

2100

4000

Galvanised or sprayed

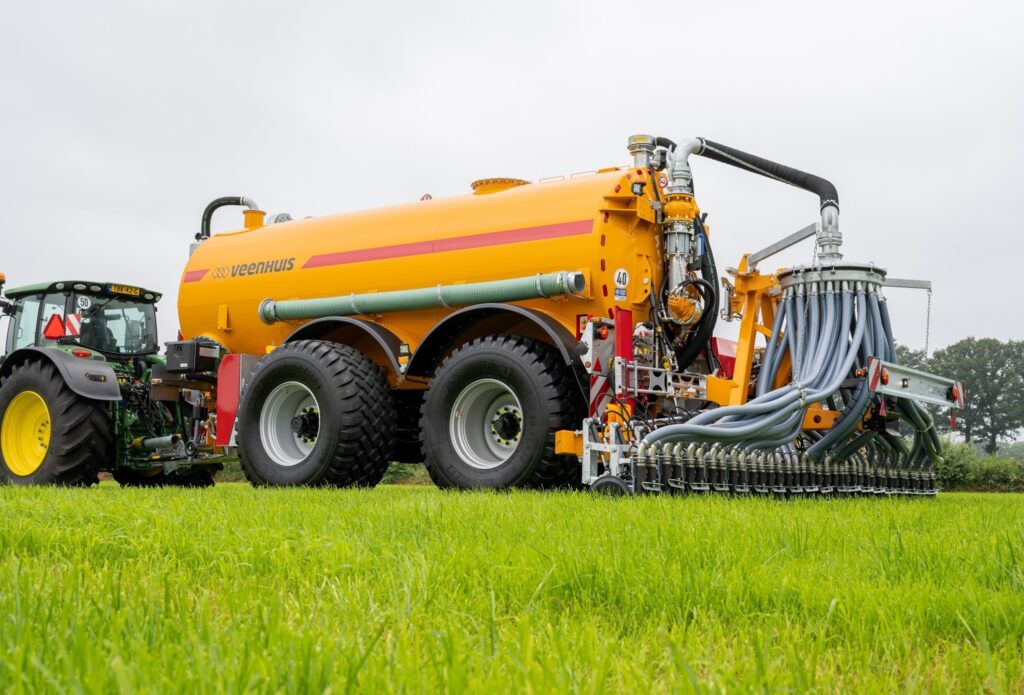

Profiline tandem axle

With the tandem axle Profiline tank you have countless options to choose from. This is a full-fledged slurry tank that has been developed to also be able to work with heavier slurry injectors. There is a choice of a vacuum version, screw pump version and a volumetric pump version. The tank capacity of the tandem axle varies from 12,000 liters to 20,000 liters. Furthermore, the tanks are equipped with a hydraulically sprung undercarriage and hydraulic forced steering. The tank can be equipped with various options to make the tank the way you want.

Profiline tandem axle

Capacity (liter)

Chassis

Hydr. power steering

Standard tyres

Pump system

Conservation

Sliding axle

Vacuum

12.000/14.850/16.600/18.450/19.450/20

Hydraulic suspended

Yes

BKT 800/65 R32

Vacuum

Galvanised or sprayed

Optional

Worm pump

14.850/16.600/18.450/19.450

Hydraulic suspended

Yes

BKT 800/65 R32

Worm pump

Galvanised or sprayed

Optional

Rotary lobe pump

14.850/20.000

Hydraulic suspended

Yes

BKT 800/65 R32

Rotary lobe pump

Sprayed

Optional

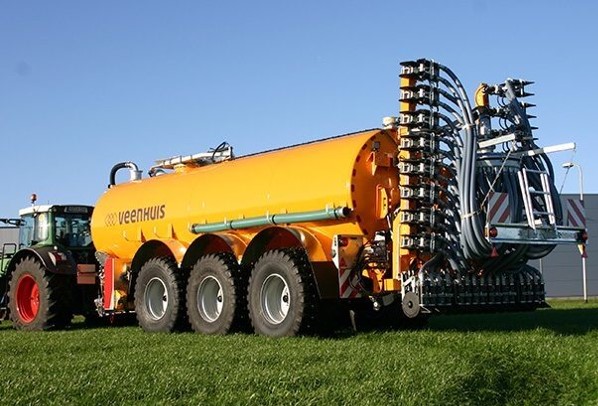

Profiline tridem axle

The Profiline tridem axle tanks from Veenhuis are the largest tanks in the range, allowing you to achieve maximum capacity in the field. The capacity varies from 25,000 liters to 29,100 liters. These tanks are equipped with a hydraulically sprung undercarriage and hydraulic forced steering. Various options and possibilities ensure that this is a very complete tank. The tridem is available in vacuum version, worm pump version and rotary lobe version.

Profiline tridem axle

Capacity (liter)

Chassis

Hydr. power steering

Standard tyres

Pump system

Conservation

Sliding axle

Vacuum

25.000/29.100

Hydraulic suspended

Yes

BKT 800/65 R32 or BKT 650/65 R30.5

Vacuum

Sprayed or galvanised

Optional

Worm pump

29.100

Hydraulic suspended

Yes

BKT 800/65 R32

Worm pump

Sprayed or galvanised

Optional

Rotary lobe

25.000

Hydraulic suspended

Yes

BKT 650/65 R30.5

Rotary lobe pump

Sprayed

-

Premium Quad Shift tanks

The Premium Quad Shift tank from Veenhuis is also part of the Profiline segment. This tank is equipped with the Quad principle, which uses 4 wheels in one row. Ideal for injecting slurry on more wet and less load-bearing soils!

Read more about the Premium Quad Shift

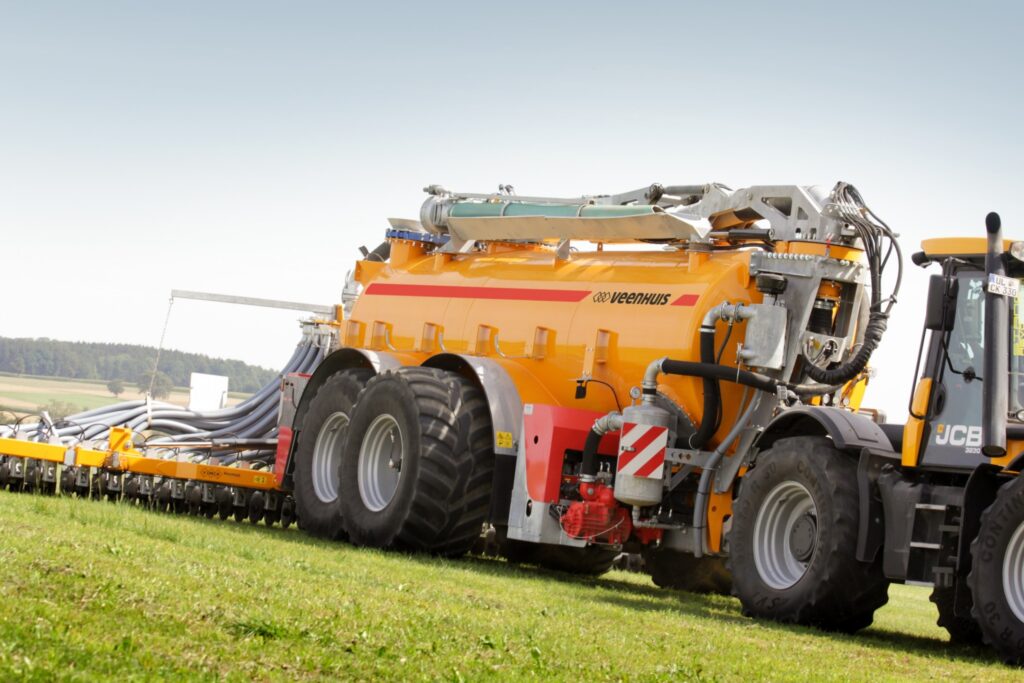

Premium Integral tanks

The Premium Integral tanks from Veenhuis set a new benchmark in efficiency, flexibility and comfort. The basis for the product line is the technology of the Profiline segment. The big difference is in the pump technology and suction arm variations. The combination of a vacuum system and centrifugal technology ensures that an impressive filling capacity can be achieved!

Read more about the Premium Integral tanks

For more information, please contact one of our salespeople or dealer, or download the brochure.
