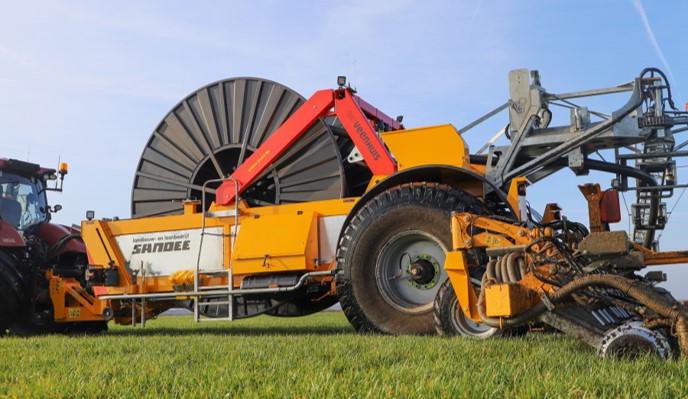

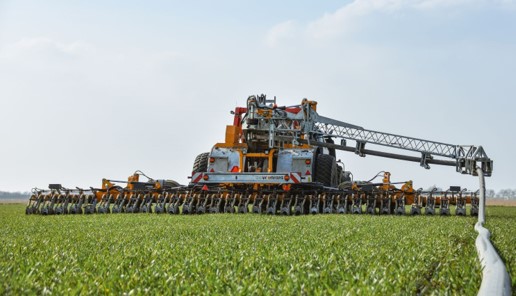

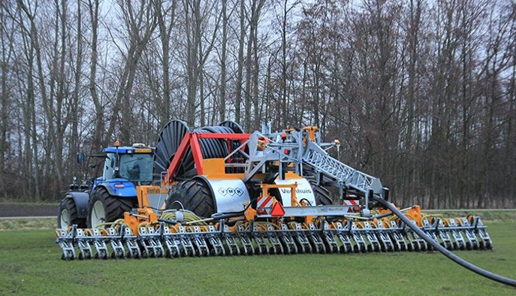

Rotomax slurry reel

The Veenhuis Rotomax slurry reel guarantees minimum soil damage and maximum capacity.

The Rotomax is a drag hose combination with a reel and a slurry injector. With this combination, the hose does not have to be dragged along and considerably less traction is needed and there is no smearing or plant damage. In combination with tyres that can be driven on this machine with a pressure of only 0.5 bar, this system gives the least disturbance to soil and crop, compared to all other systems on the market. In contrast to regular systems, the Veenhuis Rotomax places the supply hose on the ground with a swivel arm and picks it up at the same spot. This makes you very flexible in the field and a field can be finished just as with a tractor-tank combination.

The start-up and clearance times of the Rotomax are very low. On arrival at a field, you connect the hose and you can immediately start fertilising. When the field is finished, the hose can be cleaned with water or air, or you can disconnect and continue on the next field. The hose guide arm ensures that the hose can be lowered in all positions, up to the fertiliser injector with a width of 12 metres. This means that it is also possible to work in rows with this system. The hose guide arm is designed so that the hose runs smoothly through it and that any debris on the hose is immediately removed. This avoids wear on the hose. The hose life is considerably longer than with a regular drag hose system. The arm can be folded hydraulically for transport.

Because the Veenhuis Rotomax slurry reel does not need to be fully unwound, you can easily finish small plots without making compromises on how many metres of hose are needed for the plot. For large fields, field lengths of up to 1100 metres can be covered. On average, a 40-hectare plot can be finished in one pass without having to connect and disconnect. Rotomax stands for capacity and effectiveness!

Features

  • Minimal damage to turf
  • No smearing
  • High capacity
  • Efficient due to short start up and clearing time
  • For small to very large plots

Options

  • Tyres 900/65 R32
  • Manure measurement
  • NIRS measurement
  • Sliding axle
  • Articulated
  • Hose 4,5″
  • Hose 5″

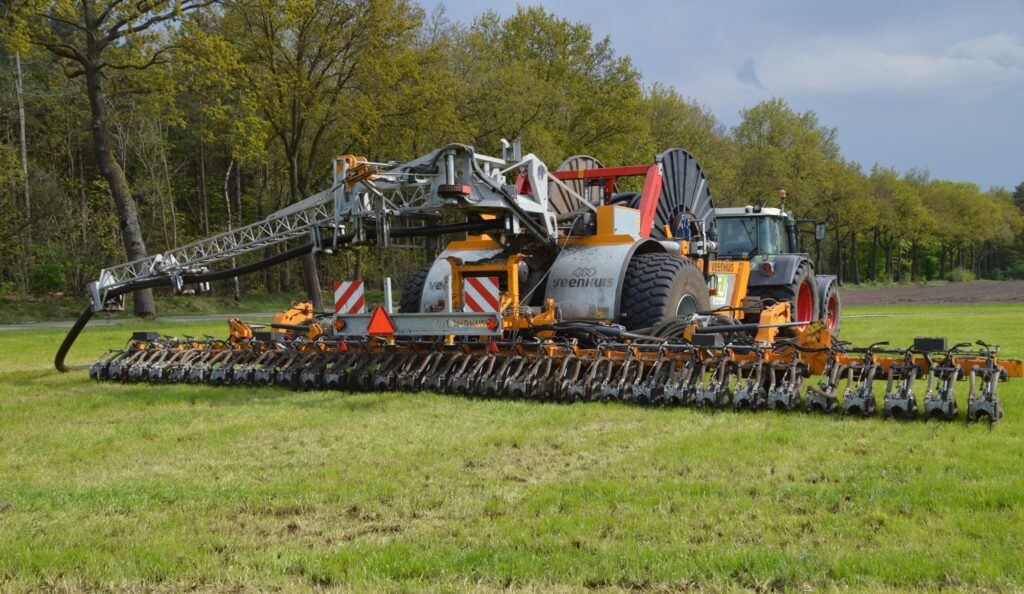

Premiumject 1200 slurry injector for the Rotomax

The Rotomax slurry reel can only be combined with the Premiumject 1200 slurry injector. This slurry injector has a width of 12 meters and is fitted with pneumatic foot valves. These slurry injectors are fitted with the unique 3-part chute discs with a diameter of 350 mm and a thickness of 24 mm. The construction ensures that the sward is not damaged.

The Premiumject 1200 slurry injector can also be combined with a self-propelled tractor.

For more information, please contact our sales staff or find a dealer near you.
